Filter crucibles for dietary fibre extraction
Filter crucibles are filters that are used for solid-liquid separation by means of vacuum. Filter crucibles have a glass sintered bottom which serves as a filter medium and does not require the use of filter paper.
We can offer different sizes with porosity 0-4.
For production we use Simax borosilicate glass tubes. We allways check glass quality, dimensions and optical clarity.
| Catalog number | – |
| ISO | – |
| DIN | – |
| Code |
Capacity (ml) |
Filter diameter (mm) |
Length (mm) |
Porosity |
Pore size (µm) |
|---|---|---|---|---|---|
| 632 421 504 010 | 30 | 30 | 60 | 0 | 160-250 |
| 632 421 504 011 | 30 | 30 | 60 | 1 | 100-160 |
| 632 421 504 012 | 30 | 30 | 60 | 2 | 40-100 |
| 632 421 504 013 | 30 | 30 | 60 | 3 | 16-40 |
| 632 421 504 014 | 30 | 30 | 60 | 4 | 10-16 |

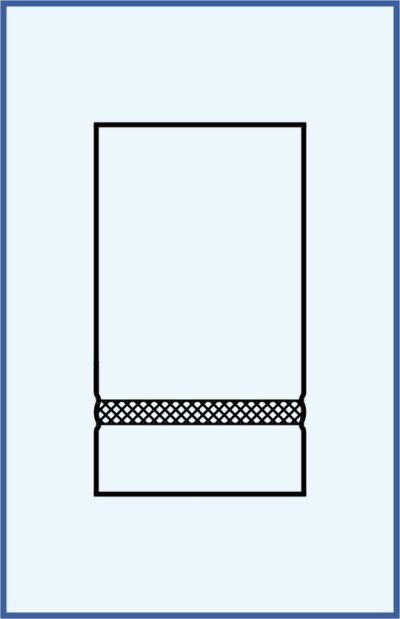

Drawing: 5570
Packing (pcs): 10
Notice:
Borosilicate glass
 |
 |
